Autel MaxiSYS IA900WAT Wheel Alignment & ADAS System Latest

Autel MaxiSYS IA900WAT Wheel Alignment and ADAS Calibration System with ULTRAADAS Tablet

Part Number: IA900WAT

The Autel MaxiSYS IA900WAT combines the IA900WA four-wheel alignment and ADAS calibration frame with the MaxiSYS ULTRAADAS wireless diagnostic tablet, MaxiFLASH VCI, and preloaded wheel alignment and ADAS calibration software. This complete package allows technicians to perform advanced diagnostics, precise four-wheel alignments, and ADAS calibration procedures through one integrated system and workflow.

The IA900WAT uses six high-resolution positioning and tracking cameras to measure alignment angles and automatically monitor vehicle height as the lift is raised or lowered. Its robotic crossbar movement, optical target-position validation, and 24 in. frame-mounted touchscreen help technicians position calibration targets quickly and accurately. The touchscreen and ULTRAADAS tablet can cast to and from one another, allowing the workflow to be controlled from either display.

Alignment software provides illustrated instructions, live readings, required tools, and adjustment locations for U.S., Asian, and European vehicles from 1996 and newer. The system supports standard camber, caster, and toe measurements along with advanced procedures such as thrust-angle analysis, steering-axis inclination, tire-diameter analysis, wheel-off adjustments, raised-vehicle adjustments, bump-steer diagnosis, steering-angle relearn, and ADAS component calibration.

Key Features

Complete wheel alignment and ADAS calibration package with ULTRAADAS tablet

Performs four-wheel alignment and ADAS component calibration on one mobile frame

Six high-resolution positioning and tracking cameras

Alignment reading accuracy to 0.02 degrees

Cameras automatically track vehicle height as the shop lift moves

Robotic frame and crossbar movement for efficient target positioning

24 in. frame-mounted touchscreen display

Frame display and ULTRAADAS tablet can cast to and from each other

Illustrated alignment instructions, live readings, required tools, and adjustment locations

Optical target-position validation calculates frame angle, distance, and offset

Vehicle coverage for U.S., Asian, and European vehicles from 1996 and newer

Folding crossbar and mobile frame for easier movement and storage

Preloaded wheel alignment and ADAS calibration software

Includes MaxiFLASH VCI for vehicle communication and diagnostics

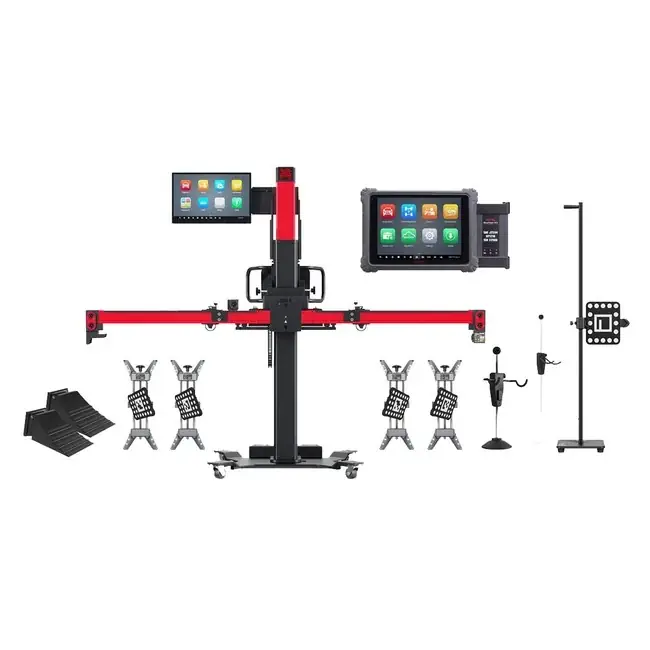

Included Components

IA900WA mobile wheel alignment and ADAS calibration frame

24 in. touchscreen display mounted to the frame

12.7 in. MaxiSYS ULTRAADAS wireless touchscreen tablet

MaxiFLASH VCI

Wheel alignment and ADAS calibration software

4 wheel clamps with camera targets

4 wheel targets

1 distance target

1 steering wheel lock

1 brake pedal lock

2 wheel chocks

Tablet cradle with charging capability

Warranty Information

Includes a 1-year limited warranty. The purchase of an IA900 system may also include in-shop setup and onboarding training performed by an Autel ADAS specialist. Training availability should be confirmed at the time of purchase.

Specifications

System Type: Mobile four-wheel alignment and ADAS calibration system with diagnostic tablet

Part Number: IA900WAT

Vehicle Coverage: U.S., Asian, and European vehicles from 1996 and newer

Alignment Accuracy: 0.02 degrees

Positioning and Tracking Cameras: 6 high-resolution cameras

Frame-Mounted Display: 24 in. touchscreen

Included Tablet: MaxiSYS ULTRAADAS wireless touchscreen tablet

Tablet Display Size: 12.7 in.

Included VCI: MaxiFLASH VCI

Software: Wheel alignment and ADAS calibration software included

Crossbar Movement: Robotic height and positioning control

Crossbar Height Range: Approximately 6 in. minimum to 7 ft. maximum

Pallet Shipping Weight: Approximately 700 lb.

Pallet Shipping Size: Approximately 86 in. L x 53 in. W x 42 in. H

Warranty: 1-year limited warranty

UPC: 849438014292
