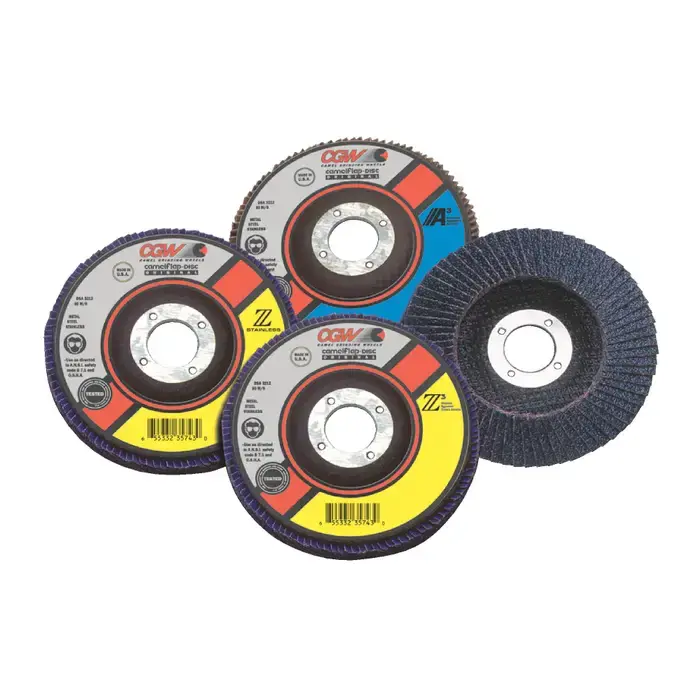

CGW ABRASIVES 31175 80 Grit 4-1/2″ Diameter Abrasive Flap Disc – Type 27, 5/8″-11 Arbor Hole Diameter Professional Grade

Faster Removal with CGW-CAMEL Flat Flap Disc for Aggressive Use and Heavy-duty Applications. Portable CGW-CAMEL flap discs are among the most common bonded abrasive products in use. Preferred by everywhere from metal fabrication shops to homeowners’ garages, CWG Flap Discs are very safe in operation. CWG Flap Discs is a type 27 cut-off wheel having a completely flat profile. As it lacks a depressed center, it provides more cutting surface and minimizes interference with the workpiece. The speed of the grinder must be compared to the speed marked on the wheel which is at a maximum of 15,300 RPM in this case. The product in discussion has the ability to vary the pressure as needed to provide a coarser or smoother finish. Varying models in grit standards from coarse to fine (24 to 120) are available. Disc with lower grit numbers will suit standard grinding and those with higher grit numbers provide smoother finishes. Choose flap disc with one or two grits coarser than required for best results. CWG-CAMEL offers flap discs of varying thickness which provides aggressive stock removal and longer life. Flap discs in discussion vary 4 to 7 inches in diameter and come in coated variants of Aluminum Oxide, Zirconia, and Carbon Steel. All coated discs have a heat-treated polyester backing. CGW Camel is the leading manufacturer of premium grinding wheels, cutting wheels, flap discs, coated abrasives, and vitrified products. CGW Abrasives has more than 60 years of experience and sells products in more than 50 countries. Their products are actively supplied in various industries, including Metal Fabrication, Construction, Aerospace, General Metal Working, Automotive.

Benefits

• Type 27 (flat) choice for smooth finishing.
• XL, XXL models offer more material removal than regular discs.
• Improved grain technology allows for higher stock removal rates and longer product life.
• Advanced grinding aid for cool cutting technology reduces heat and increases performance.
• Less vibration and fatigue for more comfortable operation.

Applications

• Use when working on flat grinding surface.

Features

• Excellent on both stainless and carbon based metals.
• High performance zirconia offers a third layer of resin “grinding aid” containing lubricants, allowing the zirconia to break down with light pressure and to excel in heat sensitive applications.
• Provides sharper cutting action and longer life than standard discs.
