Luxury ESCO 10320 Jumbo Jack, 150T, Minimum Height 27″, 14-3/8″ Stroke

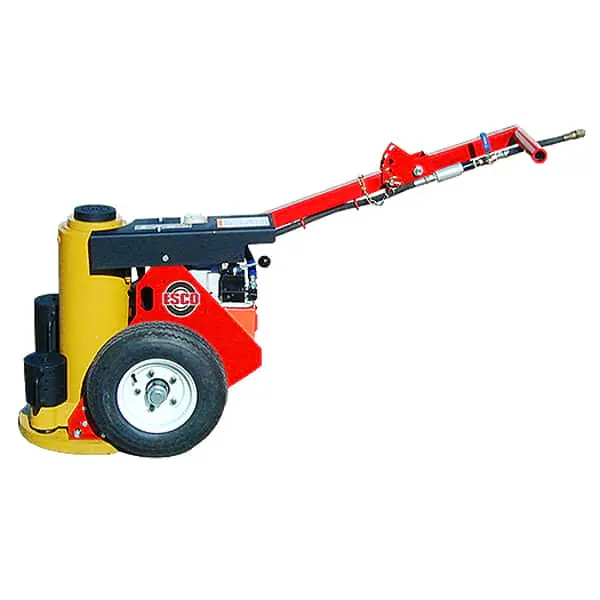

ESCO 10320 Jumbo Jack, 150T, Minimum Height 27″, 14-3/8″ Stroke

MODEL# 10320

The ESCO Jumbo Jack Series is available in multiple lifting capacities ranging from 100 tons to 250 tons. All models are air/hydraulic powered and are balanced for easy moving. Lift extension saddles are stores in the jacks base for easy adjustment to various lifting heights.

Stacking aluminum safety locking ring are an option as in air powered wheel drive for easy moving. All models are built with heavy duty lifting holes. Each Jumbo Jack has a maximum width of 23″ and will fit into tight clearance railroads, mines, and construction sites.

Ideal for Giant Tire Changing, Mining, Railroads, and Construction Rigging

Balanced for easy moving with large pneumatic wheels

Only 23″ wide, the jacks fits in tight spots

50″ long, 8 position handle for easy maneuvering

All Jumbo Jacks come with 1″ saddle, 5″ & 9″ extensions (Locking Rings Sold Separately)

Available Accessories:

Specifications

Lifting Capacity: 150 Ton

Air Pressure: 90-150 PSI

Stroke: 14.4 in. (366mm)

Min. Height: 27 in. (686mm)

Max. Height*: 41.38 in. (1051mm)

*Maximum Height Without Extensions

Handle Length: 50 in. (1270mm)

Width: 23 in. (584mm)

Weight: 860 lbs. (390 kg)

Warranty: 1 Year
