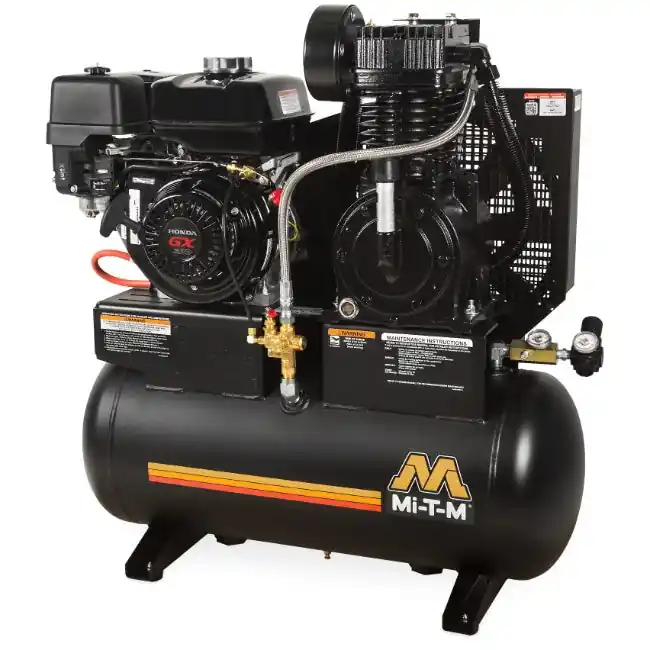

Mi-T-M AM2-SH09-20M Air Compressor Fresh Stock

Mi-T-M AM2-SH09-20M – 20-Gallon Two Stage Gasoline Air Compressor

MODEL AM2-SH09-20M

AM2-SH09-20M

Mount this unit in the back of a service truck or trailer to service large equipment in remote locations. This two stage 20-gallon air compressor offers large air storage capacity and delivers optimum air power.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Accessories (Not Included)

OPTIONS: Options must be ordered with unit and cannot be added later. (Not all are Included) add options in the notes at checkout

AX-0003 Manual Drain/Regulator/Metal Bowl – Drains moisture from air system

Specifications

CFM @ PSI: 17.2 @ 175

Displacement/ Engine: 270cc Honda GX270 OHV

Engine Idle Control: Pneumatic

Net Weight: 306.00 lbs.

Shipping Weight: 356.00 lbs.

Length: 37.00 in.

Width: 18.00 in.

Height: 38.00 in.
