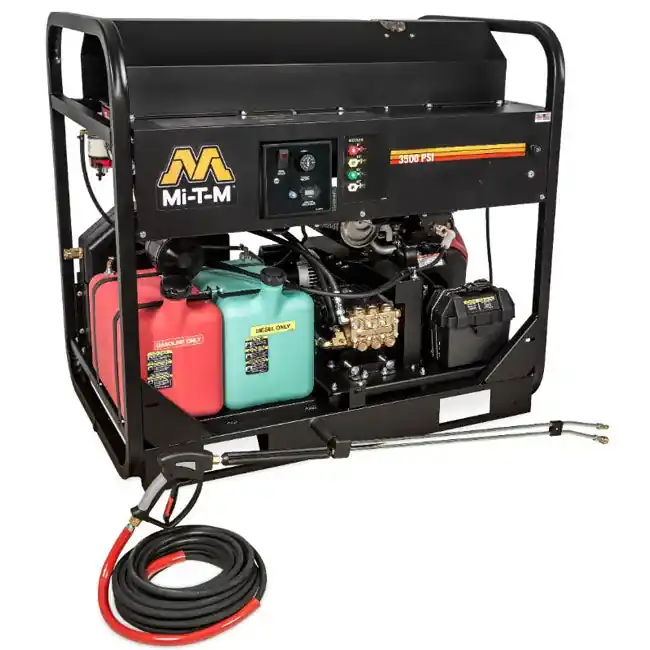

Mi-T-M HS-3506-1MGH – HS Series Gasoline Belt Drive Pressure Washer

MODEL: HS-3506-1MGH

HS-3506-1MGH

Mount the HS Series to a trailer or in the back of a truck to take mobile cleaning from one jobsite to the next. Easily blast away grease, oil, heavy mud and grime with ease.

Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer

Engine
Electric start – sealed battery included

Frame
Heavy-duty powder coated steel frame

Components
2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline MODEL:s sold in California are required to have a CARB compliant engine. Consult factory.

Optional Accessoriess (Not Included)

HX-0130 Three-way Ball Valve – Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever

HX-0131 High Pressure Detergent Injector, K7 – Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only

HX-0133 Steam Combination 250°F, K7 – Increases outlet temperature to 250°F. Steam option for MODEL:s equipped with K7 flow actuated unloaders

HX-0140 Steam Combination 250°F – Increases outlet temperature to 250°F **Requires trapping unloader. Consult factory before ordering this option**

HX-0143 Trapping Unloader – For longer hose runs and cleaning elevated areas

HX-0144 Dual Gun – Two guns may be sprayed at the same time; flow is divided between the two guns while each operator maintains equal system pressure **Requires trapping unloader. Contact factory before ordering this option.**

HX-0145 Adjustable Thermostat – Operator is able to adjust outlet water temperature between 86°F-248°F

HX-0146 Hour Meter – Displays the number of hours unit has been in operation

HX-0147 Four Point Lifting Capability – Allows unit to be lifted by crane

HX-0148 Adjustable Detergent Valve – Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**

Specifications

PSI: 3500

GPM: 5.6

Displacement/ Engine: 688cc Honda GX630 OHV

Pump: General

Engine Fuel Tank Capacity: 10.0 gallon

Burner Fuel Tank Capacity: 10.0 gallon

Burner Fuel Cons.: 3.37 gph

BTU Per Hour: 471,800

Net Weight: 760.00 lbs.

Shipping Weight: 864.00 lbs.

Length: 50.00 in.

Width: 34.00 in.

Height: 46.00 in.
