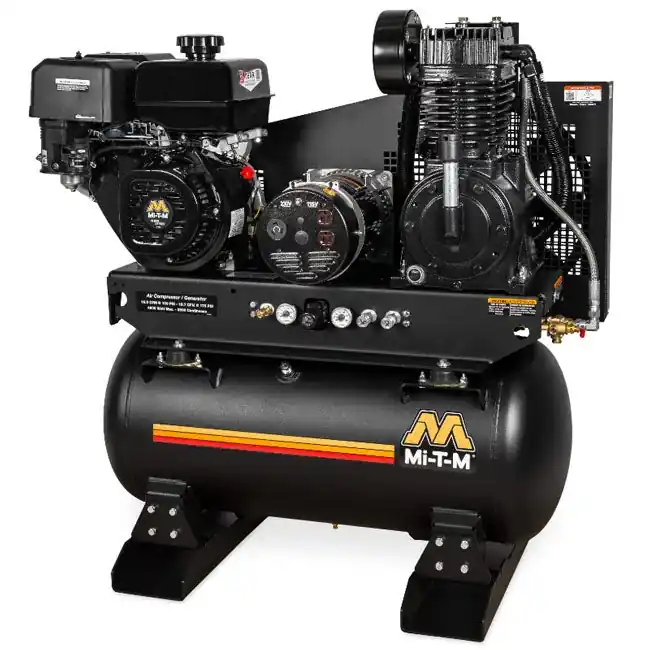

Seasonal Sale Mi-T-M AG2-SM14-30M – 30-Gallon Two Stage Gasoline Combination Air Compressor / Generator

Mi-T-M AG2-SM14-30M – 30-Gallon Two Stage Gasoline Combination Air Compressor / Generator

MODEL: AG2-SM14-30M

AG2-SM14-30M

The 30-gallon two stage air compressor/generators tie two units into one for optimal power reMODEL:ers, contractors and DIYers appreciate.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline MODEL:s sold in California are required to have a CARB compliant engine. Consult factory.
Equipped with 150-PSI maximum rated regulator.

Optional Accessoriess (Not Included)

IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for MODEL:s that are mounted in service truck applications

AX-0063 Lifting Hook – For easier portability

AX-0075 Idle Down – When activated it automatically throttles down engine to conserve fuel

Specifications

CFM @ PSI: 16.4 @ 90

CFM @ PSI: 15.7 @ 175

Alternator Wattage: Max. Output: 4000 watts

Alternator Wattage: Cont. with Comp. On-Load: 2300 watts

Alternator Wattage: Cont. with Comp. Off-Load: 3500 watts

Displacement/ Engine: 420cc Mi-T-M OHV

Net Weight: 450.00 lbs.

Shipping Weight: 550.00 lbs.

Length: 40.00 in.

Width: 24.50 in.

Height: 45.00 in.
