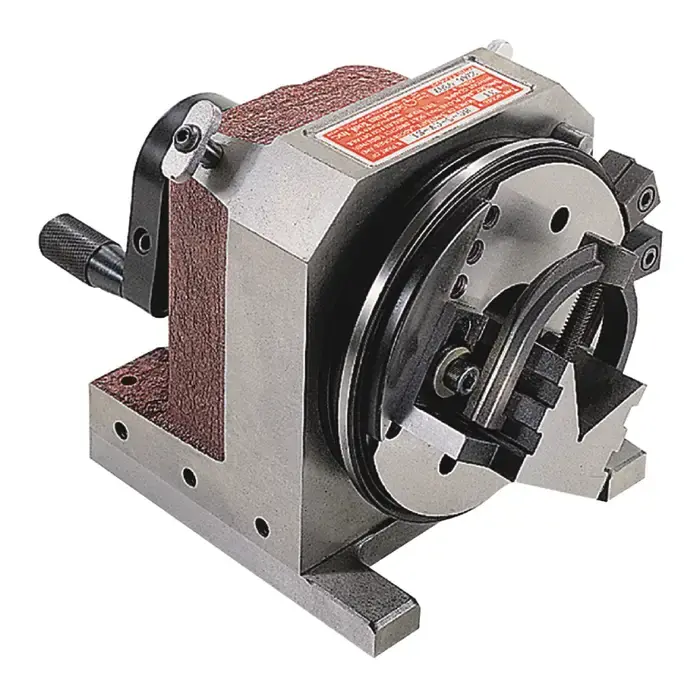

Suburban MG5CVS1 Master-Grind Spin Index Fixture for Versatile Indexing and Workholding. By opting for the Suburban Master-Grind fixture, you get both V-block and 5C collet features in one place. As this spin index fixture has a 2-1/2-inch built-in sine bar, you can employ it to set angles at hard-to-set index locations. The device offers indexing in 5 degrees. Meaning, the fixture comes with a 72-position index plate that provides a hard stop at every 5-degree ±15 arc seconds. The extra-large 1-5/8-inch V-block allows for both horizontal and vertical stock mounting. Moreover, the 5C collet enhances the stock holding capacity of the fixture. The MG5CVS1-model Master-Grind Spin Index fixture comes in a 3-inch center height, and it has an overall height of 5-1/2 inches. Its base dimensions are 4 x 5 inches. The 22-pound grinding fixture comes with a through-hole of 11/4 inches. Besides, it is designed to be compatible with the Sine Set system. You can bolt it to a Sine Set sine plate or an S1-series compound sine plate, or also to the AP-664-S1 90-degree conversion plate. The maximum spindle runout of the fixture is 0.00005 inch. The spindle runs on two heavy-duty tapered roller bearings that come with a diameter of 4 inches. Also, the grinding fixture is square and parallel within 0.0002 inches. Optionally, you can also buy the custom-made MG5-MD-model motor drive set as an accessory for the grinding fixture. The 1/15 HP reversible motor that can be mounted on either side of the Master-Grind fixture offers variable speed with 60 to 300 rpm. The set comes with a mounting bracket, a motor pulley, a drive belt, and screws. The sturdy MG5CVS1 Master-Grind fixture comes packed in a custom-mold wooden case, and the fixture offers a 24-month warranty.

Benefits

• As the Master-Grind grinding fixture has a 21/2-inch built-in sine bar, it allows you to have angles set at various index locations that are impossible otherwise.
• The extra-large 15/8-inch V-block helps you mount stock both horizontally and vertically.
• The 5C collet feature further increases the stock holding capacity of the grinding fixture.
• The MG5CVS1 Master-Grind spin-index fixture is shipped in a custom-mold wooden case, and it offers a full 24-month warranty.

Applications

• The Master-Grind fixture from Suburban offers indexing in 5 degrees, and it is compatible with the Sine Set system.
• You can effortlessly bolt the MG5CVS1 fixture to a Sine Set sine plate or a compound sine plate, or even to the AP-664-S1 90° conversion plate.
• To enhance the performance of the grinding fixture, you can separately buy the MG5-MD-model motor drive set that offers variable speed with 60 to 300 rpm.

Features

• Suburban MG5CVS1 Master-Grind spin index fixture offers both V-block and 5C collet holding features.
• It comes with a 72-position index plate to provide a hard stop at every 5° ±15 arc seconds and is square and parallel within 0.0002 inches.
• The grinding fixture has a 3-inch center height, 4 x 5-inch base dimensions, and a 1-1/4-inch through-hole.
• It has a 0.00005-inch maximum spindle runout, and the spindle runs on two 4-inch-diameter tapered roller bearings.
