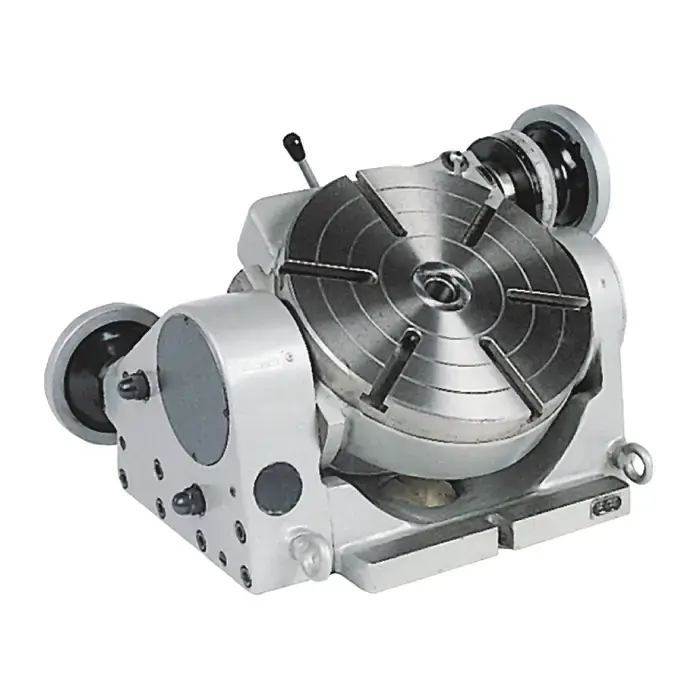

Special Discount PHASE II 222-412 12″ Tilting Rotary Table

Indexing Heads for 8 inches to 12 inches Phase II Horizontal Rotary Tables. Phase II Indexing heads or Dividing Plates (241-101) allow you to precisely divide a circle into a number of divisions or degrees. The indexing feature helps prevent errors during the repetitive adjustments required in indexing work. The dividing plate set is used to divide one 360° table rotation into divisions of 30′. The gear ratio of the compatible horizontal rotary table is 1:90. This means that 90 rotations of the handwheel rotate table one full rotation. This model of dividing plate accessories is compatible with Phase II horizontal rotary tables of size 8 inches, 10 inches and 12 inches. Therefore for one full rotation of the table, the number of handwheel rotations per division “N” times the number of divisions “T” is equal to 90 rotations of the handwheel. So N x T= 90 or N = 90 ÷ T. Say for example, if 17 divisions are required for indexing on a workpiece, then T=21, so N= 90/17 =55/17 = 5 10/34. With 5 full handwheel rotations, 17 divisions are covered and the rest 10/34 by one handwheel rotation. The 10/34 of a handwheel rotation is obtained by using the dividing plates. The annular holes as provided in the dividing plates permit the required number of divisions of one handwheel rotation. The weight of the dividing plate is about 5 lbs.

Benefits

• The dividing plates have been provided with annular holes permitting the required number of divisions of one handwheel rotation.
• Inexpensive option to MasterCAM for drawing up the hole pattern.

Applications

• Indexing heads or Dividing Plates can be used on the tables of milling machines, drill presses, grinders, and boring machines.
• Ideal for applications where tolerances are required.
• Used in Quality control.
• Typical use cases include machining the flutes of a milling cutter, cutting the teeth of a gear, milling curved slots, or drilling a bolt hole circle around the circumference of a part.

Features

• Manual Indexing plates or Dividing Plates for 8 inches to 12 inches Rotary Tables.
• Dividing plates have all divisions from 2 to 66 and all numbers from 68 to 132 that can be divided by 2, 3 and 5.
• 90 rotations of the handwheel rotate the table one full rotation.
• Plates are hardened and ground for use in harsh working conditions.
• Dividing Plates Set comes with rotary table fixtures and a handle.
