Square D D223N General Duty Safety Switch Weekend Sale

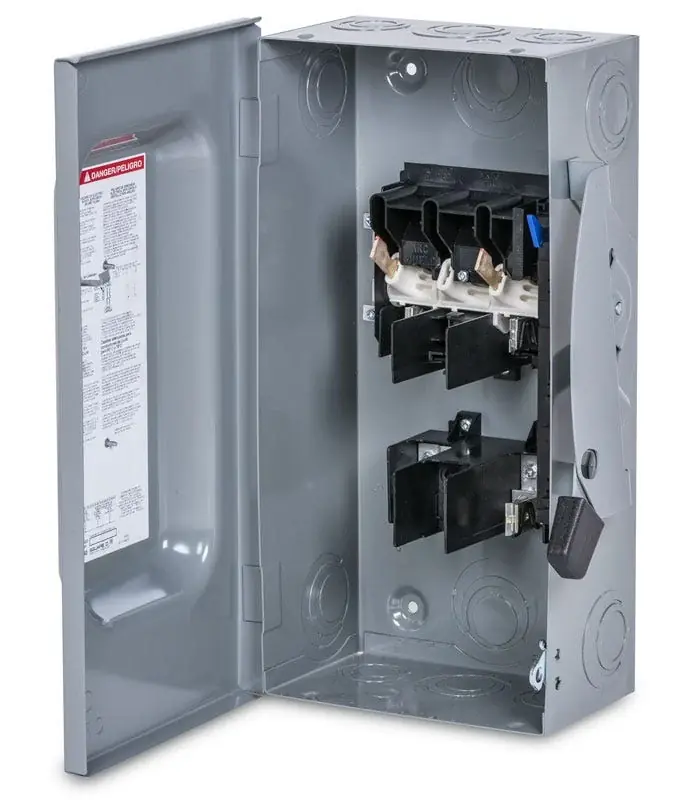

Square D D223N General Duty Indoor Safety Switch

• Authentic Square D D223N Safety Switch
• Terminal Type: Lugs
• Type of Duty: General Duty
• UPC : 785901460688
• Maximum Voltage Rating: 240VAC
• Wire Size: #12 to #1/0 AWG(Al) – #14 to #1/0 AWG(Cu)
• Depth: 6.50 Inches
• Height: 17.50 Inches
• Width: 8.50 Inches
• Action: Single Throw
• Ampere Rating: 100A
• Approvals: UL Listed File: E2875
• Enclosure Rating: NEMA 1
• Enclosure Type: General Purpose (Indoor)
• Factory Installed Neutral: Yes
• Fuse Type: Cartridge (Class H K or R)
• Disconnect Type: Fusible
• Short Circuit Current Rating: 100kA (max. depending on fuse type)
• Mounting Type: Surface
• Number of Poles: 2-Pole
•
General Duty Safety Switches are a durable and economical solution for applications such as lighting air conditioning and appliances.
